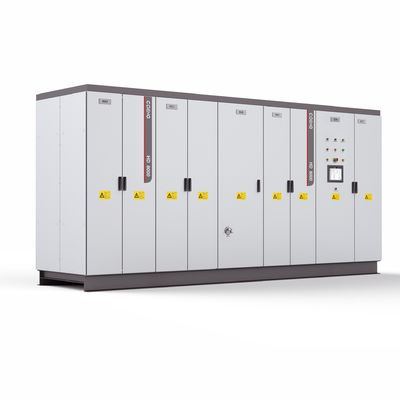

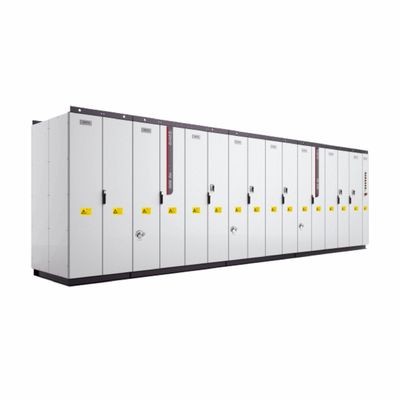

HD8000 series VFD is a high-power drive system includes AC-DC-AC comverter and DC-AC common DC bus multi-axis motor drive unit. The maximum power can reach 30MVA for single machine and 60MVA for parallel operation. Its modular hardware and engineering software design concept enables it to operate for various complex conditions.

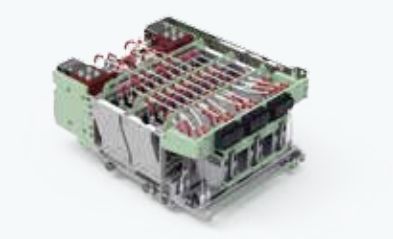

HD8000 series VFD adopts presspack IGCTand Diode as well as liquid cooling method, the whole machine meets the protection level IP54 and it has super environmental adaptability, high reliability, excellent heat dissipation performance and small volume, there are two-quadrant and four-quadrant rectification solutions.

• Characteristics: single/multiple axis drive, IP54 protection, two-quadrant/four-quadrant
• Design: modular design
• Rectification: multi-pulse basic rectification, smart rectification and PWM rectification
• Voltage rate: 1900V3000V (3300V), 6000V, (6600V), 10000V
• Maximum power: 30MVA (single) 60MVA (parallel)
• Compitable motor: asynchronous induction motor, permanent magnet synchronous motor, Electrically excited synchronous motor
• Control method: V/F, close-loop vector control with sensor, open-loop vector control without sensor
• Cooling: water cooling

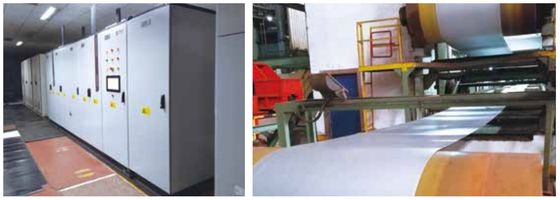

• Metallurgical Engineering
• Oil and Gas Transportation
• Testing Platform
• Renewable Energy
• Rail Transportation
• Mining&Lifting
• Marine Equipment
• LNG
• Power Source
• Energy Storage

• Suitable for textile, footwear, and food processing.
• Handles humid and corrosive environments.
• Easy to operate with minimal training.
• High overload tolerance for unstable grids.
• Affordable and efficient operation.
• Local technical support and spare parts availability.
• Compact size fits small and medium factories.
• Compatible with Japanese and Korean motor standards.

• Ideal for manufacturing and automotive sectors.
• High efficiency reduces operational costs.
• Supports EU energy and safety standards.
• Easy integration with European automation systems.
• Robust construction for harsh industrial environments.
• Water cooling ensures stable performance.
• High torque accuracy for precision applications.
• Local service and training support.

• Suitable for agriculture, mining, and energy sectors.
• Handles voltage fluctuations in remote areas.
• High starting torque for pumps and compressors.
• Easy to maintain with local technical support.
• Resilient to harsh weather conditions.
• Energy-saving operation reduces costs.
• Compatible with common South American motor brands.
• Durable and long-lasting design.

• Built for unstable grid conditions with wide input range.
• Ideal for oil, gas, and mining industries.
• High dust and moisture protection.
• Easy to install and commission.
• Affordable and reliable performance.
• Local service network for quick support.
• High overload capacity for heavy machinery.
• Low maintenance requirements.

• High energy efficiency supports sustainability goals.
• Suitable for pulp & paper, marine, and HVAC applications.
• Quiet operation for noise-sensitive areas.
• Complies with EU CE and PED directives.
• Advanced control for precision engineering.
• Reliable in cold climates with anti-condensation features.
• Easy to integrate with ABB and Siemens systems.
• Long service intervals reduce operational costs.
